Datalogging with DiabloSport Programmers and DiabloSport Dataviewer


This is what we are looking for in Datalogging with DiabloSport Programmers.



Diablosport



Here is a list of some of the important items we need to dial your vehicle in correctly.

These are more for Factory Naturally Aspirated Vehicles below-



ECT- Coolant temp

IAT- Intake air temp

RPM

Vehicle speed

Long Term fuel trim Bank 1

Long Term fuel trim Bank 2

Short Term Fuel trim Bank 1

Short Term Fuel Trim Bank 2

Manifold Absolute Pressure

Spark Advance

Knock Restard

Throttle position

Absolute Manifold Pressure

Maf  Frequency



The items we need configured for data logging  for Ford Ecoboost or Ford Speed Density vehicles are below-

Vehicle Speed MPH (speed)
Gear or Gear Comm. (Gear it is in)
RPM (engine speed)
Manifold Absolute Pressure KPA (Boost)
Knock (or Global Knock)
Knock Cyl 1
Knock Cyl 2
Knock Cyl 3
Knock Cyl 4
Knock Cyl 5
Knock Cyl 6
Throttle Angle Actual
measured afr bank 1
measured afr bank 2
Spark Advance
intake air temp2
engine coolant temp
load
turbo wastegate percentage
tip prs boost kpa
tip prs boost kpa dsd
short term fuel trim bank 1
short term fuel trim bank 2
long term fuel trim bank 1
long term fuel trim bank 1
torque source



A 60 second log at idle and a 60 second log at 45 mph cruise is good. Email that to [email protected] or [email protected]

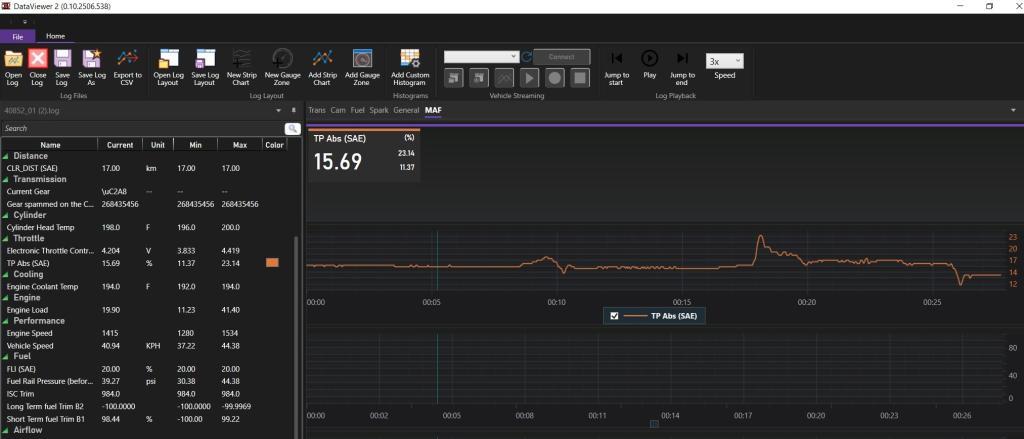

Here is a pic of a Datalog in DiabloSport Dataviewer. You can also download Dataviewer at DiabloSport website below and here DiabloSport Dataviewer 2



DataViewer 2 Download – https://documents.holley.com/techlibrary_dv2_installer.exe



DataViewer 2



DiabloSport Datalog
